Linear displacement sensors and accessories

Product range

Linear displacement sensors

RoHS

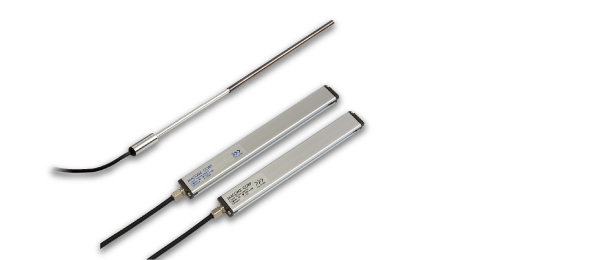

Fully non-contact type linear displacement sensors.
Two series available for different applications.

  • □ Completely non-contact measurement of linear displacements
  • □ Linear output of absolute values for measured position.

List of linear displacement sensors

Coaxial structure (probe and mated sleeve) and
very slim sensor section

ET series

  • Effective length:15～200㎜
  • SProtective structure:IP67
  • Response up to:1kHz (-3dB)
  • Separate and integrated circuit types
ET series

Detect tiny magnetic target at up to 8 mm away from the sensor.
Completely non-contact and no worry about wear.

MP-620 series

  • Effective length:100～800㎜
  • SProtective structure:IP67
  • Linear voltage output:1-5V 4-20mA
  • Zero and Span to fine-tune the effective area.
MP-620 series
